HDB Aircon Installation: Rules, Requirements, Pitfalls

Installing an air conditioner in a Housing and Development Board flat requires strict adherence to specific regulatory standards.

The authorities enforce clear, if unglamorous, rules regarding equipment placement and structural safety. Violating these guidelines can easily trigger enforcement letters, hefty fines, or forced reinstatement at your own expense.

We understand how confusing these strict regulations can feel for an average resident. This practical rulebook translates complex bureaucracy into plain English. You will learn the exact HDB Aircon Installation Requirements Every Homeowner Should Know before booking a contractor.

Rule 1: Only Split Systems For New Installs

Since 2003, HDB Build-To-Order flats have been built with pre-installed compressor brackets on service balconies. Window units simply lack compatibility with most modern architectural window designs. Therefore, practically every new installation in Singapore requires a split system.

We consistently recommend split systems because they provide superior cooling efficiency for our tropical climate. A standard 9,000 BTU split system perfectly cools a typical 15 to 18 square metre bedroom.

If you own a pre-2000 flat with an existing window unit, you can legally replace it like-for-like. Most homeowners upgrade to a split system during renovation because the window aperture easily converts.

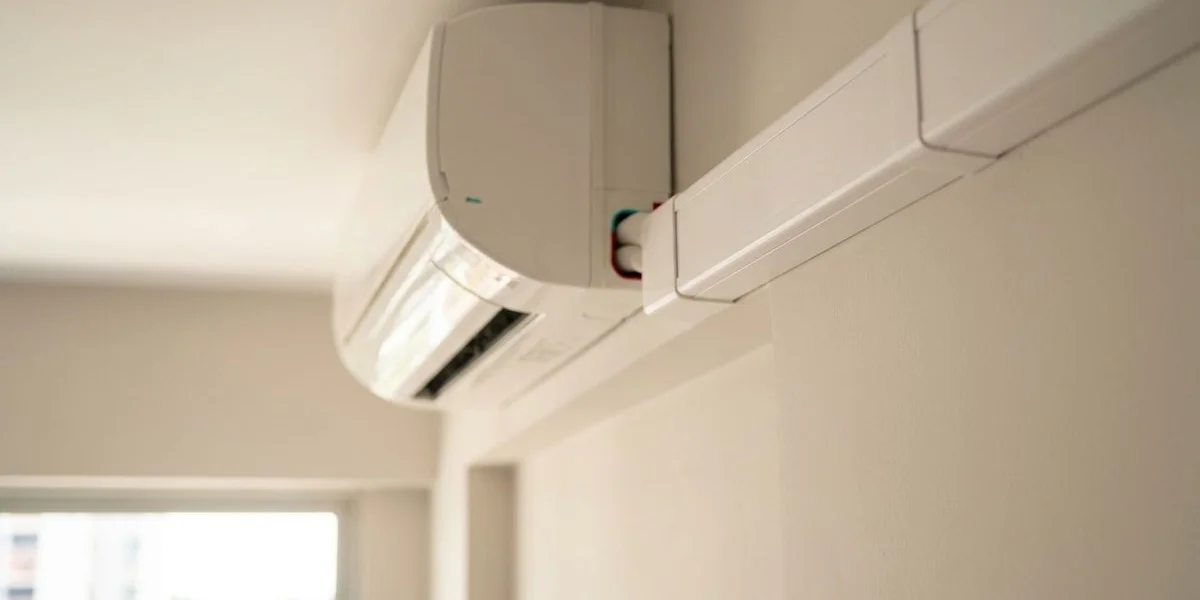

Rule 2: Trunking Colour & Finish

Inside your flat, trunking must be either standard white or painted to match your interior wall at your own cost. The common corridor or external facade requires strict colour coordination to maintain aesthetic uniformity.

• Inside your flat: Trunking must remain standard white or be professionally painted to match the interior walls at your personal expense.
• Common corridor: Your piping must match the block’s officially approved colour palette precisely.
• Approved schemes: Some blocks permit white only, while others mandate a specific matching corridor beige.
• Prohibited finishes: You must never use neon, glossy, or mismatched colours on the exterior.

We always verify the approved estate colour palette before beginning any exterior work. Your installer must know your specific block guidelines to prevent a warning letter. If your contractor seems unsure, check with your local town council before installation day.

Rule 3: No Visible Copper Pipes

Inside or outside the flat, all copper refrigerant pipes must remain fully enclosed inside proper PVC trunking. Direct exposure to Singapore’s humid, salt-laden air causes rapid copper corrosion and system failure. Proper trunking also prevents severe condensation damage to the walls located directly behind the cooling pipes.

We strongly advise using high-quality half-inch Armaflex Class 0 insulation around these copper lines. This specific 2026 industry standard insulation drastically reduces the risk of internal condensation over the long term.

Visual standards enforced by the town council also dictate this clean, hidden appearance. Any installation quote that excludes full-length trunking is fundamentally non-compliant with local regulations.

Rule 4: Drainage Pipe Exit

Drainage water must exit via a designated point to prevent structural damage and neighbour disputes. Service balcony units must drain directly through the existing floor outlet provided by the builder. Living and bedroom units require drainage routed along trunking down to the service balcony outlet.

We regularly handle service calls where improper drainage causes massive neighbour complaints. An average split system produces one to three litres of condensation per hour in our humid climate.

Allowing this water to drip freely from your ledge attracts fines from the National Environment Agency up to S$1,000. You must never drain water directly onto the common corridor, below your window, or into sanitary waste pipes.

Rule 5: Compressor Bracket Must Be Pre-Approved

The Building and Construction Authority mandates highly specific safety standards for outdoor compressor brackets. HDB-approved compressor brackets come pre-installed at most post-2003 flats. Owners of older flats can purchase approved brackets directly via their HDB Branch Office.

We install Grade SS 304 stainless steel brackets because they resist rust perfectly in coastal environments. The maximum weight allowed is usually 80kg for older flats and up to 110kg per wall panel for newer units.

These brackets are strictly rated for the weight of a standard split condenser. Never drill your own custom bracket into the external facade. This reckless action voids your flat insurance and triggers immediate enforcement, and a falling bracket resulting from poor maintenance carries a maximum fine of S$20,000.

Rule 6: Piping Route — What’s Allowed

Piping routes must follow strict structural safety guidelines to protect the entire residential block.

• Along interior walls: Permitted via proper PVC trunking.
• Across interior ceilings: Permitted via securely mounted trunking.
• Through non-structural hack walls: Permitted only if a registered contractor handles the physical hacking.
• Through structural columns or beams: Strictly prohibited under all circumstances.
• Through common corridor walls: Strictly prohibited because this involves shared public airspace.

We always submit the necessary paperwork before altering any non-structural partitions. Altering a load-bearing wall without a Professional Engineer endorsement and structural permit risks building integrity. Illegal hacking of structural walls currently carries a severe penalty of up to S$5,000 in Singapore.

Rule 7: Multi-Split Approval

Installing a multi-split system featuring one outdoor unit serving multiple indoor blowers requires careful planning. Some blocks mandate formal Building and Construction Authority or HDB approval for heavier setups. This approval becomes necessary if the bracket load exceeds standard limits for multi-compressor designs.

Our administrative team routinely handles these specific permit applications for homeowners. An upgraded 40-Amp main switch in newer flats comfortably supports larger system-four configurations.

You also need a permit if the installation requires drilling new holes through the structural facade. Modifications to the service balcony roof will similarly trigger a formal review process. Typical application processing takes roughly three to seven working days.

Rule 8: Reinstatement On Move-Out

Tenants renting an HDB flat must carefully review the specific clauses in their tenancy agreement regarding cooling systems. Typical landlords impose strict reinstatement requirements upon moving out.

• The air conditioning unit must remain fully functional and blow cold air.
• Existing trunking must stay completely intact rather than being ripped out.
• Landlords usually demand an official receipt proving the system underwent professional servicing within the last six months.
• Any physical damage to the walls surrounding the piping requires proper plastering and repainting.

We frequently issue official chemical wash service receipts that satisfy these exact move-out requirements. If you installed a brand new unit that was not present originally, you might need to remove it completely. You will then bear the cost of reinstating the wall to its original blank condition.

Pre-Install Checklist: HDB Aircon Installation Requirements Every Homeowner Should Know

Before the installation date arrives, verify these crucial details to ensure full compliance.

• Installer holds valid BCA-trained certification and extensive local block experience.
• Compressor bracket comes pre-installed or formal approval is secured.
• Trunking colour is finalized as standard white or custom painted.
• Drainage route clearly maps directly to the designated service balcony floor trap.
• Quotation clearly itemises the total trunking length and any necessary painting fees.
• Installation warranty terms appear clearly written on the final invoice.
• Manufacturer warranty registration is fully included.

Common HDB Enforcement Triggers

Town councils and housing inspectors actively look for specific visual violations during routine estate patrols.

• Exposed and visible copper pipes running along the external building facade.
• Trunking colours that clash heavily with the approved block paint palette.
• Condensation drainage visibly dripping down into a neighbour’s open window.
• Installation of an unapproved or severely rusted outdoor compressor bracket.
• Unauthorised drilling or penetration through a main structural wall.

We help clients resolve these exact issues after they hire unqualified handymen. Typical enforcement starts with a formal warning letter granting a 14-day rectification window.

Ignoring this official notice forces the authorities to mandate complete removal at your personal expense. Forced reinstatement typically costs homeowners anywhere between S$800 and S$2,000.

Fines & Costs If You Get It Wrong

Making a mistake during installation carries severe financial consequences under current 2026 regulations.

Our professional licensed installation labour usually costs a highly reasonable S$300 to S$450. Hiring an unlicensed worker who triggers a major enforcement action ultimately costs five to ten times more.

Paint Trunking Yourself?

Inside the flat, painting the PVC covers yourself is perfectly acceptable once the installation finishes completely. You must follow a precise process to avoid damaging the materials.

• Allow the new trunking adhesive to cure for at least 24 hours.
• Use a high-quality acrylic latex paint like Nippon Paint Odourless.
• Apply a dedicated primer coat first for darker shades.
• Apply two very thin coats of paint instead of one thick layer.

We strongly advise against using harsh oil-based paint alternatives. Oil-based formulas contain solvents that actively react with and degrade the plastic casing.

On the external facade, never paint the trunking yourself. The town council supplies the officially approved exterior paint palette for consistency across the estate. Applying any other unofficial paint outside your window counts as an unauthorised external modification.

Book An HDB-Compliant Install

We have successfully completed over 10,000 compliant installations across various estates in Singapore. Strict regulatory compliance comes permanently built into our transparent default quotation process.

This proactive approach completely eliminates the risk of surprise rectification bills later on. Book installation via WhatsApp at +65 9182 5233 to secure your appointment today.

Our experienced team guarantees a seamless setup that meets every single government requirement perfectly. By adhering to the HDB Aircon Installation Requirements Every Homeowner Should Know, you protect your property and ensure long-lasting comfort.
